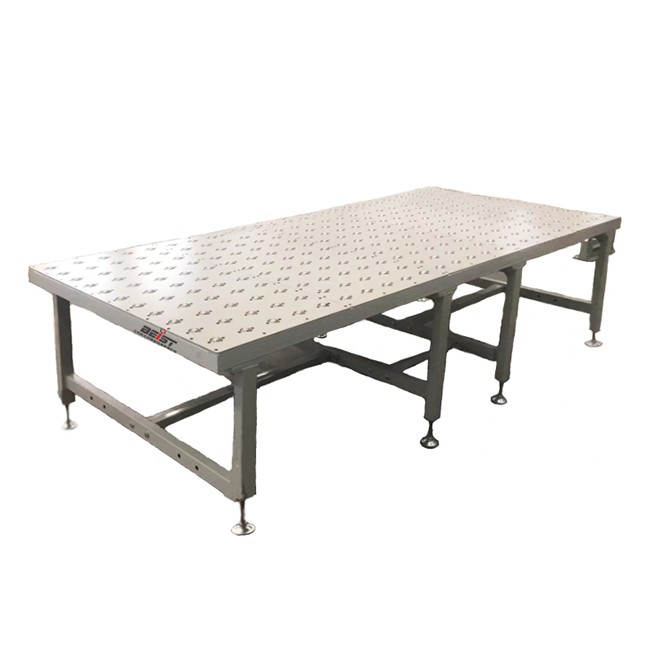

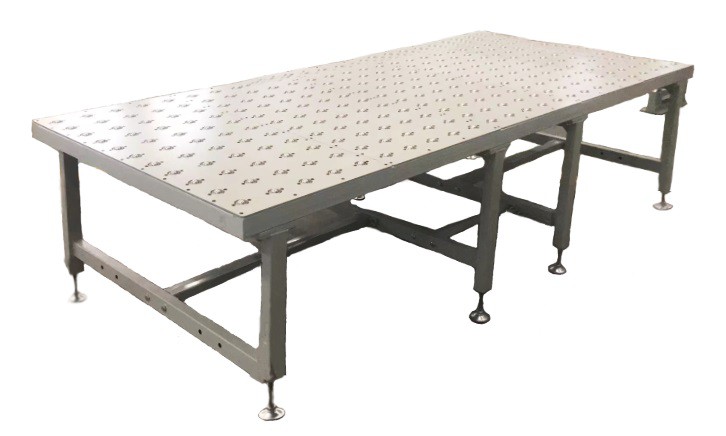

Ball Transfer Table For Wood Panel Handling

In the woodworking and panel processing industry, surface quality is everything. Our ball transfer table (also known as a ball transfer conveyor) is specifically engineered for factories handling sensitive materials like melamine-faced boards, laminated panels, and raw wood substrates. Unlike traditional steel ball roller tables, our innovative tabletop conveyor combines air float technology with a protective plastic surface, allowing workers to manually rotate and shift heavy boards in any direction with minimal resistance-guaranteeing zero scratches and zero contamination.

Handling finished boards often comes with the risk of costly surface damage. Our solution eliminates this risk while significantly reducing worker fatigue.

1. 100% Scratch-Free Surface Protection

The core advantage of our system is the specialized tabletop design. By integrating air float mechanisms and high-quality plastic plates, we create a cushioned, low-friction environment. This ensures that even the most delicate melamine finishes or pre-finished veneers remain pristine during rotation and transfer.

2. Effortless 360° Manual Rotation

Equipped with high-precision ball transfer units (BTUs) underneath the protective layer, the ball transfer conveyor allows for omnidirectional movement. Workers can easily slide, spin, or align large panels without heavy lifting or mechanical force, adhering to ergonomic safety standards.

3. Clean & Contamination-Free Operation

Dirt and dust are the enemies of board finishing. Our plastic and air-cushion design prevents metal-on-wood friction, which often generates dust or leaves black streak marks. The surface is easy to clean, keeping your production line spotless.

4. Heavy-Duty Load Capacity

Don't let the smooth operation fool you. Built with a robust steel frame and industrial-grade ball transfer units, this table is designed to support heavy stacks of raw boards and dense composite panels with ease.

This versatile tabletop conveyor is the perfect addition to various stations in your production line:
* Post-Press Inspection: Rotating melamine boards for quality checks without scratching the surface.
* Edge Banding In-feed/Out-feed: Easily aligning boards before or after edge banding machines.
* Packaging Stations: allowing workers to maneuver panels into boxes or wrapping stations smoothly.
* Sorting & Buffering: A temporary holding area where boards need to be shifted frequently.

Q1: How does this ball transfer table prevent scratches on melamine or finished boards?
A: Unlike traditional steel roller conveyors, our ball transfer conveyor features a specialized protective plastic top combined with an air float system. This design creates a cushioned, low-friction surface that eliminates direct metal-to-board contact. It ensures that even highly sensitive surfaces-like glossy melamine, veneers, or acrylic finishes-remain 100% scratch-free and free from black friction marks during rotation and handling.

Q2: What is the maximum load capacity of the ball transfer table?
A: Our ball roller tables are built with a heavy-duty steel frame and industrial-grade ball transfer units (BTUs). While standard models typically support between 50kg to 500kg per square meter, we understand that factory needs vary. We can customize the frame structure and the density of the ball units to meet your specific load requirements, ensuring stable handling for heavy HDF, MDF, or particle board stacks.

Q3: Can the table be customized to fit our existing production line dimensions?
A: Yes, absolutely. We offer full customization for both the length and width of the platform to ensure it integrates seamlessly into your workshop layout. Whether you need a compact rotary station for a packaging corner or a larger buffer table for sorting, our engineering team can tailor the dimensions and height to match your workflow.

Q4: Does the air float and the plastic surface require special maintenance?
A: Not at all. The system is designed for low maintenance in an industrial environment. The ball transfer units are sealed to prevent dust ingress, and the plastic/air float top is easy to clean. Simply wiping the surface with a standard cloth is usually sufficient to remove any wood dust or debris, keeping the friction low and the surface clean without complex upkeep.

Q5: Is this ball transfer table suitable for raw wood (unfinished boards) as well?
A: Yes. While the zero-scratch feature is critical for finished melamine boards, the omnidirectional ball transfer design is equally beneficial for raw wood substrates. It significantly reduces the physical effort required for workers to manually rotate, align, and shift heavy raw panels, improving overall handling efficiency and reducing worker fatigue regardless of the material type.

Contact us today to discuss your specific board dimensions and load requirements. We offer customizable sizes and load capacities to fit seamlessly into your existing workflow.
